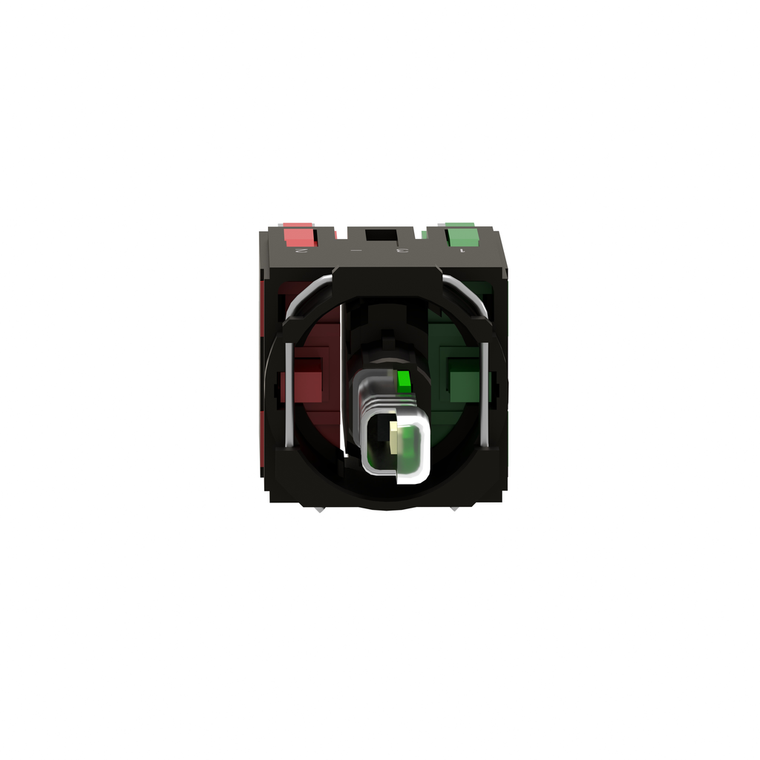

Schneider Electric ZB6ZB51B Body For Illuminated Control But To N Di

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB6ZB51B Body For Illuminated Control But To N Di

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6ZB51B

UPC:

3389110784473

MPN:

Condition:

New

Contact Operation:

slow-break

Ambient Air Temperature For Operation:

-25-70 °C

Sale Per Indivisible Quantity:

1

Electrical Shock Protection Class:

class II IEC 61140

Rohs Exemption Information:

Yes

Connections - Terminals:

Faston connector 2.8 x 0.5 mm

Supply Voltage Limits:

6-30 V AC/DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Width:

24 mm

Mercury Free:

Yes

Light Source Colour:

yellow

Operating Force:

1.6 N NO changing electrical state

Contacts Type And Composition:

1 NO

Positive Opening:

with IEC 60947-5-1 appendix K

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

China Rohs Regulation:

X

Light Source:

LED

Current Consumption:

15 mA

Bulb Base:

integral LED

Circularity Profile:

ENVEOLI1710010EN

Range Of Product:

Harmony XB6

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Warranty:

18 months

[Us] Rated Supply Voltage:

12...24 V AC/DC

Cad Overall Depth:

51 mm

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

CSA || GOST || CCC || UL

Contacts Usage:

standard

Device Short Name:

ZB6

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Height:

18 mm

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Signalling Type:

steady

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

Electromagnetic Emission:

class B IEC 55011

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP1710010EN

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Product Or Component Type:

complete body for illuminated push-button

Sustainable Offer Status:

Green Premium product

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Terminals Description Iso N°1:

(13-14)NO

Operating Travel:

2 mm NO changing electrical state) || 4.3 mm total travel)

Protective Treatment:

TC

Short-Circuit Protection:

6 A cartridge fuse gG IEC 60947-5-1

Fixing Collar Material:

plastic

Standards:

UL 508 || JIS C 4520 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C 852 || CSA C22.2 No 14 || IEC 60947-1

Net Weight:

0.006 kg
