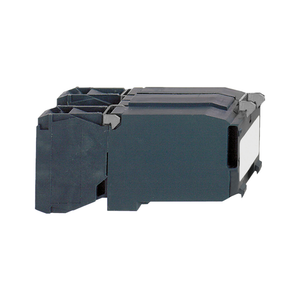

Schneider Electric ZBE1014 No Connector Contact Pack of 5

Schneider Electric ZBE1014 No Connector Contact Pack of 5

Schneider Electric
SKU:
ZBE1014
|
UPC:
3389110089493
Availability:
Contact us to confirm availability and lead times.
$104.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony ZB, single contact block uses plug-in terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple plug-in connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Operating Force:
2.3 N NO changing electrical state
Ambient Air Temperature For Storage:
-40-70 °C
Product Certifications:
CSA || UL || DNV || GL || LROS (Lloyds register of shipping) || BV
Mechanical Durability:
10000000 cycles
Device Presentation:
basic element
Reach Free Of Svhc:
Yes
Environmental Disclosure:
ENVPEP1808008EN
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Block Type:
single
Sale Per Indivisible Quantity:
5
Electrical Durability:
1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13
Net Weight:
0.011 kg
Sustainable Offer Status:
Green Premium product
Connections - Terminals:
plug-in connector
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Electrical Composition Code:
C11 3 ) || C14 2 ) || M10 2 )
Positive Opening:
without
Mercury Free:
Yes
Product Or Component Type:
contact block
Warranty:
18 months
Ambient Air Temperature For Operation:
-40-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Circularity Profile:
ENVEOLI1808008EN
Contacts Type And Composition:
1 NO
Ip Degree Of Protection:
IP20 IEC 60529
China Rohs Regulation:
X
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Range Of Product:
Harmony XB4 || Harmony XB5
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 IEC 60947-5-1 || 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Contacts Material:
silver alloy (Ag/Ni)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards:
JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Short Name:
ZBE
Mounting Of Block:
front mounting
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Contacts Usage:
standard contacts
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Protective Treatment:
TH
Toxic Heavy Metal Free:
Yes
Contact Operation:
slow-break
