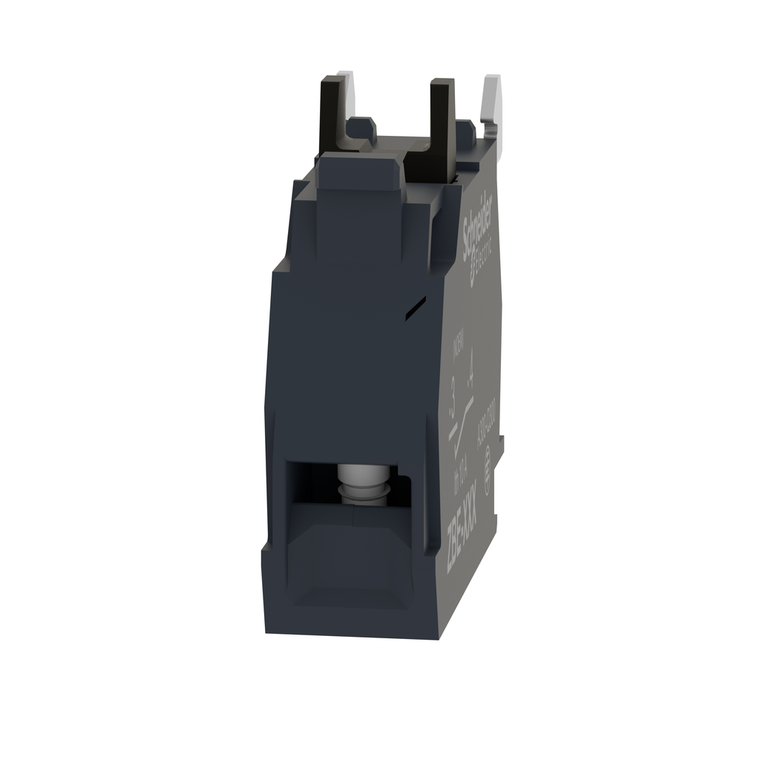

Schneider Electric ZBE201 Early Make No Contact Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZBE201 Early Make No Contact Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZBE201

UPC:

3389110177442

MPN:

Condition:

New

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A300 IEC 60947-5-1 || 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q300 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1

Product Certifications:

DNV || GOST || BV || UL || CCC || GL || CSA || LROS (Lloyds register of shipping)

Mounting Of Block:

front mounting

Contact Operation:

early make

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

Standards:

UL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Sustainable Offer Status:

Green Premium product

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contacts Usage:

staggered contacts

Range Of Product:

Harmony XB4 || Harmony XB5

Net Weight:

0.011 kg

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Device Short Name:

ZBE

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Positive Opening:

without

Reach Free Of Svhc:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Operating Force:

2.3 N NO changing electrical state

Sale Per Indivisible Quantity:

5

Ip Degree Of Protection:

IP20 IEC 60529

Product Or Component Type:

contact block

Circularity Profile:

ENVEOLI1808008EN

Electrical Composition Code:

C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Mechanical Durability:

10000000 cycles

Environmental Disclosure:

ENVPEP1808008EN

Contact Block Type:

single

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operating Travel:

2.6 mm NO changing electrical state) || 4.3 mm total travel)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty:

18 months

Ambient Air Temperature For Operation:

-40-70 °C

Toxic Heavy Metal Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Mercury Free:

Yes

Contacts Type And Composition:

1 NO

Shape Of Screw Head:

cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Protective Treatment:

TH
