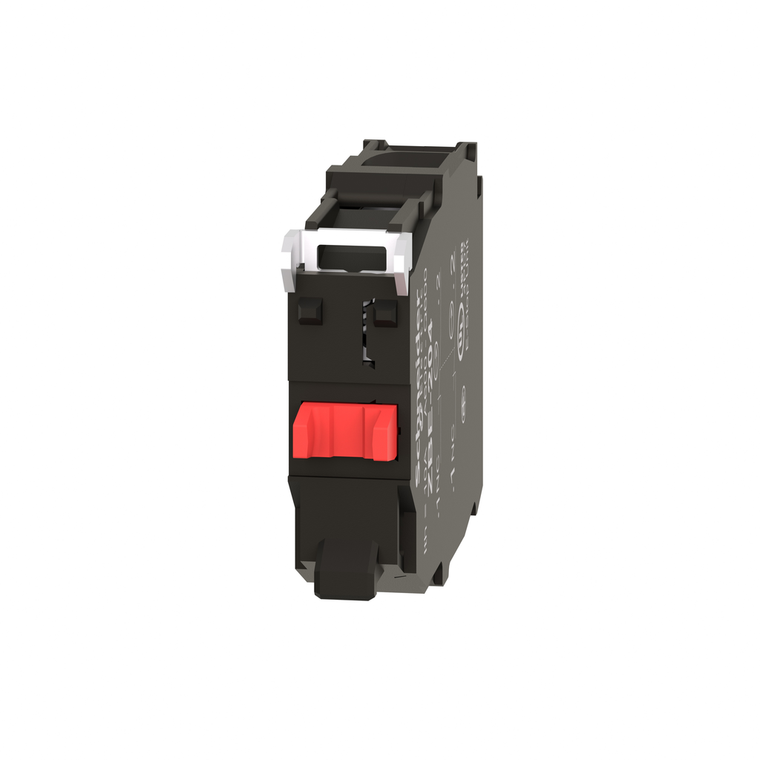

Schneider Electric ZBE204 Double 2Nc Contact

Schneider Electric ZBE204 Double 2Nc Contact

Schneider Electric
SKU:
ZBE204
|
UPC:
3389110119206
Availability:
Contact us to confirm availability and lead times.
$34.26
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony ZB, double contact block uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This double contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation:
-40-70 °C
Ip Degree Of Protection:
IP20 IEC 60529
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Operating Force:
3.4 N NC changing electrical state
Device Short Name:
ZBE
Electrical Durability:
1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13
Range Of Product:
Harmony XB4 || Harmony XB5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Contacts Material:
silver alloy (Ag/Ni)
Sale Per Indivisible Quantity:
5
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Shape Of Screw Head:
cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Net Weight:
0.02 kg
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Protective Treatment:
TH
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Positive Opening:
with IEC 60947-5-1 appendix K
Electrical Composition Code:
C2 3 ) || C4 2 ) || C6 2 ) || C8 1 ) || C10 2 ) || C13 3 ) || M2 2 ) || M4 2 ) || M8 2 )
Contacts Type And Composition:
2 NC
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Reach Free Of Svhc:
Yes
Mounting Of Block:
front mounting
China Rohs Regulation:
X
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Product Or Component Type:
contact block
Contact Operation:
slow-break
Contact Block Type:
double
Circularity Profile:
ENVEOLI1808008EN
Mechanical Durability:
10000000 cycles
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1808008EN
Product Certifications:
CCC || CSA || GL || BV || DNV || LROS (Lloyds register of shipping) || UL || GOST
Contacts Usage:
standard contacts
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
Device Presentation:
basic element
Standards:
IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || UL 508 || JIS C8201-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
