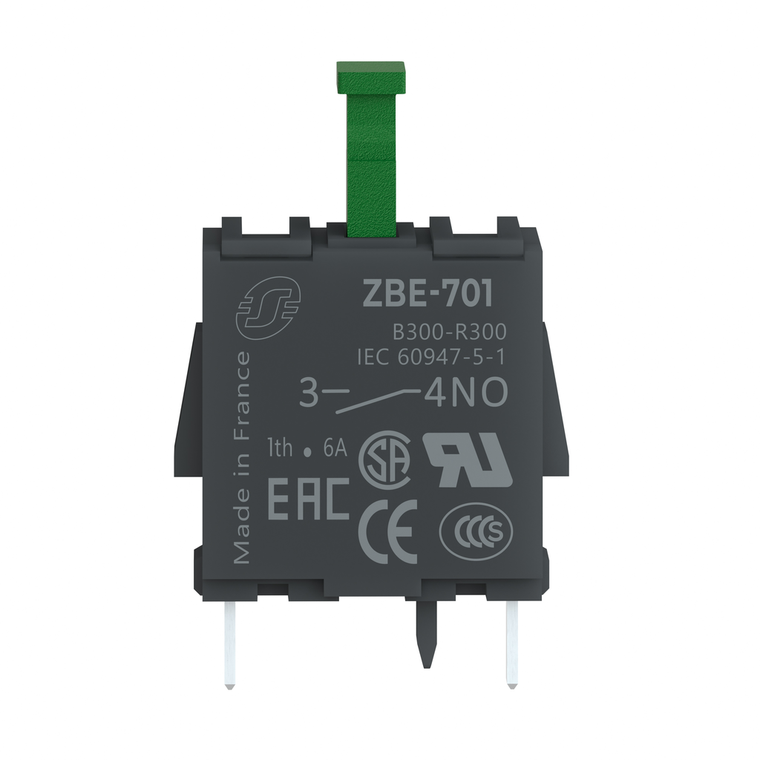

Schneider Electric ZBE701 Control Button Contact Block Zbe Diam 22 Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZBE701 Control Button Contact Block Zbe Diam 22 Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZBE701

UPC:

3389110089516

MPN:

Condition:

New

Protective Treatment:

TH

Product Certifications:

UL || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV

Contacts Usage:

standard contacts

Sustainable Offer Status:

Green Premium product

Positive Opening:

without

Mechanical Durability:

5000000 cycles

Ip Degree Of Protection:

IP20 IEC 60529

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Operating Travel:

2.6 mm NO changing electrical state) || 4.3 mm total travel)

[Ith] Conventional Free Air Thermal Current:

6 A IEC 60947-5-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Or Component Type:

contact block

Sale Per Indivisible Quantity:

10

Short-Circuit Protection:

4 A cartridge fuse gG IEC 60947-5-1

Net Weight:

0.011 kg

Ambient Air Temperature For Operation:

-25-70 °C

China Rohs Regulation:

X

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Device Short Name:

ZBE

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1

Operating Force:

2.3 N NO changing electrical state

Contacts Material:

silver alloy (Ag/Ni)

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

IEC 60947-5-1 || IEC 60947-1 || UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contact Operation:

slow-break

Environmental Disclosure:

ENVPEP1808008EN

Circularity Profile:

ENVEOLI1808008EN

Contacts Type And Composition:

1 NO

Connections - Terminals:

pins for printed circuit board

Contact Block Type:

single

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc:

Yes

Range Of Product:

Harmony XB4 || Harmony XB5
