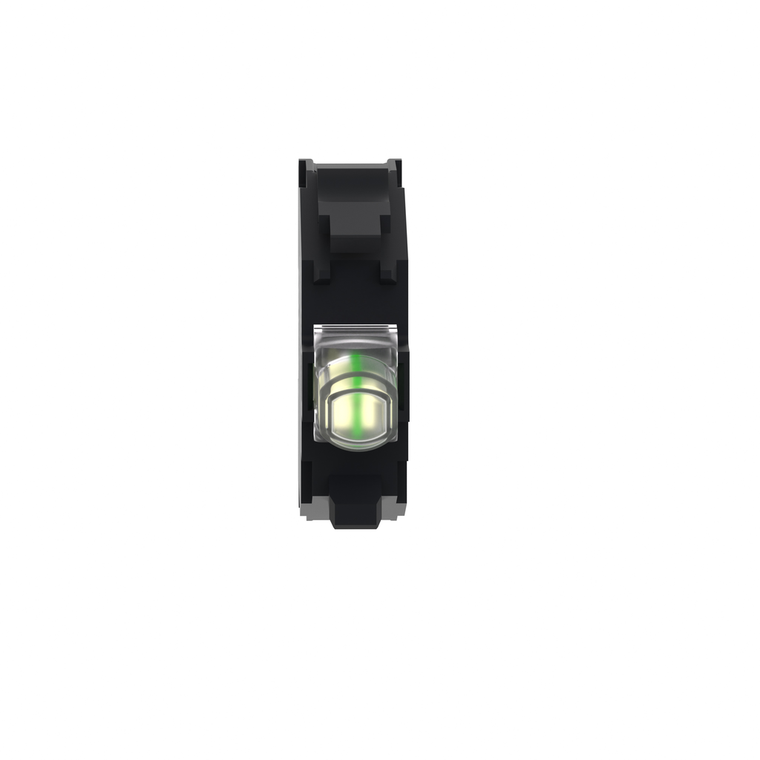

Schneider Electric ZBVB1 Led Pilot Light Led 24 V Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZBVB1 Led Pilot Light Led 24 V Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZBVB1

UPC:

3389110089615

MPN:

Condition:

New

Current Consumption:

15 mA

Electrical Composition Code:

M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Electromagnetic Emission:

class B IEC 55011

Bulb Base:

integral LED

Sale Per Indivisible Quantity:

5

Light Block Supply:

direct

Ambient Air Temperature For Storage:

-40-70 °C

Circularity Profile:

ENVEOLI2302007EN

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Ambient Air Temperature For Operation:

-40-70 °C

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP20 IEC 60529

Product Or Component Type:

light block

Sustainable Offer Status:

Green Premium product

Range Of Product:

Harmony XB5 || Harmony XB4

Standards:

JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || JIS C8201-1

[Us] Rated Supply Voltage:

24 V

Warranty:

18 months

Net Weight:

0.017 kg

China Rohs Regulation:

X

Device Presentation:

basic element

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Service Life:

100000 h at rated voltage and 25 °C

Device Short Name:

ZBV

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

UL Listed || CSA

Environmental Disclosure:

ENVPEP2302007EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Protective Treatment:

TH

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Light Source Colour:

white

Surge Withstand:

1 kV IEC 61000-4-5

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Light Source:

universal LED

Signalling Type:

steady

Mounting Of Block:

front mounting

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
