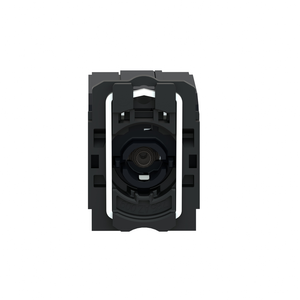

Schneider Electric ZBZM156 230V Test Pilot Light
Schneider Electric
$40.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony ZB, double light block for test light function operates with an integral LED. It is supplied with 48V to 230V AC. It is compatible with Harmony XB4 and XB5. This double light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- [Us] Rated Supply Voltage:
- 48...230 V AC
- Product Compatibility:
- integral LED
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 30 gn 18 ms IEC 60068-2-27 || 50 gn 11 ms IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.01 kg
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Warranty:
- 18 months
- Electrical Shock Protection Class:
- class I Harmony XB4 IEC 60536 || class II Harmony XB5 IEC 60536
- Environmental Disclosure:
- ENVPEP1808008EN
- Product Or Component Type:
- block for test light
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Electrical Connection:
- wires
- Standards:
- IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-5 || JIS C 4520
- Circularity Profile:
- ENVEOLI1808008EN
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Rohs Exemption Information:
- Yes
- Light Block Type:
- double block for test light function
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Material:
- plastic
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Certifications:
- DNV || GL || LROS (Lloyds register of shipping) || UL Listed || BV || CSA
- Range Of Product:
- Harmony XB5 || Harmony XB4
- Datasheet:
- View
