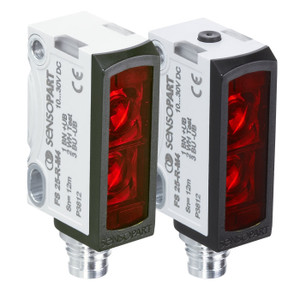

SensoPart FE 25-R-PS-M4M Through-beam photoelectric sensor
Sensopart
The SensoPart FE 25-R-PS-M4M is a high-performance through-beam photoelectric sensor designed for precise detection tasks. With a working distance ranging from 0 to 15 meters, this receiver unit utilizes a red LED light source for reliable operation. It features a teach-in adjustment for easy setup and a PNP switching output for seamless integration into various systems. The sensor is housed in a compact F25 series enclosure (34 x 20 x 12 mm) and is equipped with a robust metal plug M8, 4-pin connection. It operates efficiently within a temperature range of -20 to +60°C and boasts an impressive enclosure rating of IP69K, ensuring durability in harsh environments. With a velocity of 1000 Hz, it is ideal for high-speed applications. For more information, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 13000
- Velocity [Hz]:
- 1000
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
