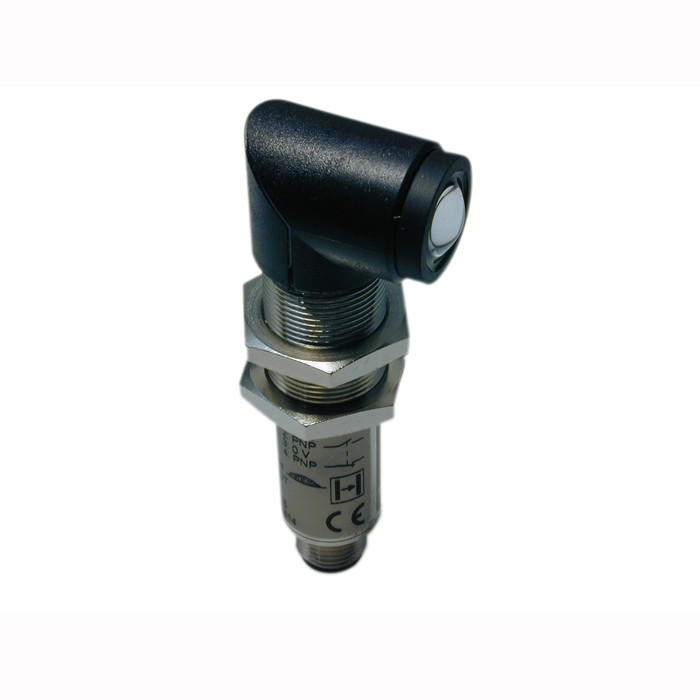

SensoPart FLS 18 W-L4 Through-beam laser sensor
Sensopart
The SensoPart FLS 18 W-L4 Through-beam Laser Sensor is designed for precision and reliability in industrial applications. With a maximum working distance of 50 meters, this sensor operates using a photoelectric through-beam principle, featuring a separate sender and receiver. It boasts a high velocity of 6000 Hz, ensuring rapid response times for dynamic environments. The sensor is equipped with a red laser light source (Class 1) and allows for easy adjustment via a potentiometer. It operates efficiently within a temperature range of -10 to +50°C and is protected by an IP65-rated enclosure, making it suitable for various challenging conditions. The connection is facilitated through a 4-pin M12 plug, ensuring secure and straightforward integration into existing systems. For more detailed information, you can access the datasheet, catalog, and operating instructions through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 50000
- Velocity [Hz]:
- 6000
- Adjustment:
- Potentiometer
- Light source:
- Laser, red (Class 1)
- Temperature range [°C]:
- -10 ... +50
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
