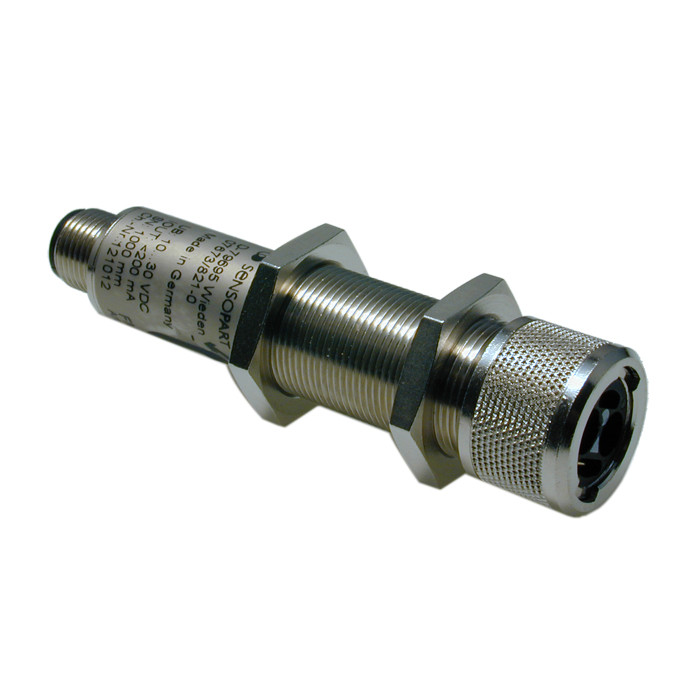

SensoPart FMS 18-34 UL4-60 Photoelectric proximity sensor for adaptation of fiber-optic cables
Sensopart
The SensoPart FMS 18-34 UL4-60 is a high-performance photoelectric proximity sensor designed for the adaptation of fiber-optic cables. It features an infrared LED light source with a frequency of 5000 Hz, ensuring rapid and reliable detection. The sensor offers both PNP and NPN normally open switching outputs, providing flexibility in various applications. With a maximum working distance of 500 mm, it is adjustable via a potentiometer for precise operation. The sensor is equipped with a robust M12 4-pin plug connection and is rated IP65 for protection against dust and water ingress. It operates efficiently within a temperature range of -20 to +60°C, making it suitable for diverse environments. For further technical details, refer to the datasheet, catalog, operating instructions, and CAD files available through the provided links.
- Velocity [Hz]:
- 5000
- Series:
- M18
- Working distance max. [mm]:
- 500
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
