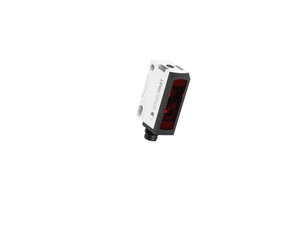

SensoPart FR 25-R-PNSL-KM4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 25-R-PNSL-KM4 is a high-performance photoelectric retro-reflective sensor designed for precision and reliability. With a working distance ranging from 100 mm to 6000 mm, this sensor utilizes a red LED light source and features a teach-in adjustment for easy setup. It offers a versatile switching output with PNP/NPN auto-detect capabilities and operates efficiently within a temperature range of -20°C to +60°C. The sensor is equipped with a 150 mm pigtail connection and a 4-pin M8 plug, ensuring seamless integration into various systems. Rated IP69 for superior protection against dust and water, this sensor is ideal for demanding industrial environments. Additionally, it supports IO-Link interface for advanced communication and control. For more detailed information, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 100
- Working distance max. [mm]:
- 6000
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Pigtail, plug M8, 4-wire, 150 mm
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
