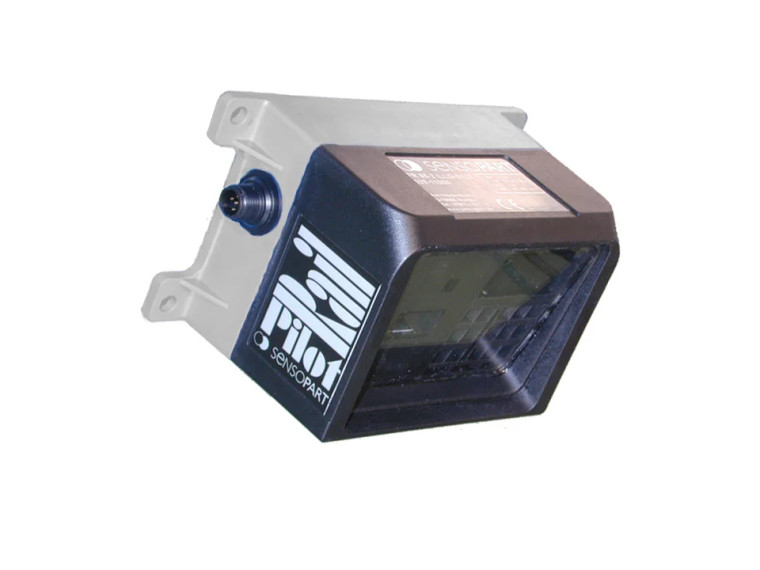

SensoPart FR 85-2 ILLG-S1L5 57,6 kB F 85
Sensopart
$633.00
The SensoPart FR 85-2 ILLG-S1L5 57,6 kB F 85 is a high-performance distance sensor designed for precise collision prevention. With a measurement range of 0 to 6 meters on a reflector, this laser sensor ensures accurate detection and reliable operation. It features a wide detection cone and two 2x2 detection zones, providing comprehensive coverage for various applications. The sensor is equipped with one input and two PNP outputs, allowing for versatile integration into your systems. The RS485 interface facilitates seamless communication, while the detection zone can be adjusted externally for customized performance. Additionally, the sensor offers reliable suppression of foreign objects such as girders and pillars, ensuring uninterrupted functionality. Encased in a durable plastic housing with a plug M12 5-pin connection, the SensoPart FR 85-2 ILLG-S1L5 is an ideal choice for enhancing safety and efficiency in industrial environments.
- Linearity [mm]:
- 70
- Sensor principle:
- Distance sensor with time-of-flight
- Series:
- F85 (145 x 85 x 80 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 6000
- Interface:
- RS485
- Type:
- Cubic
- Light source:
- LED, infrared
- Resolution [mm]:
- 16
- Repeatability [mm]:
- 100
- Temperature range [°C]:
- ±0 ... +50
- Measurement output:
- RS485
- Connection type:
- Plug M12, 5-pin
- Enclosure rating:
- IP 54
