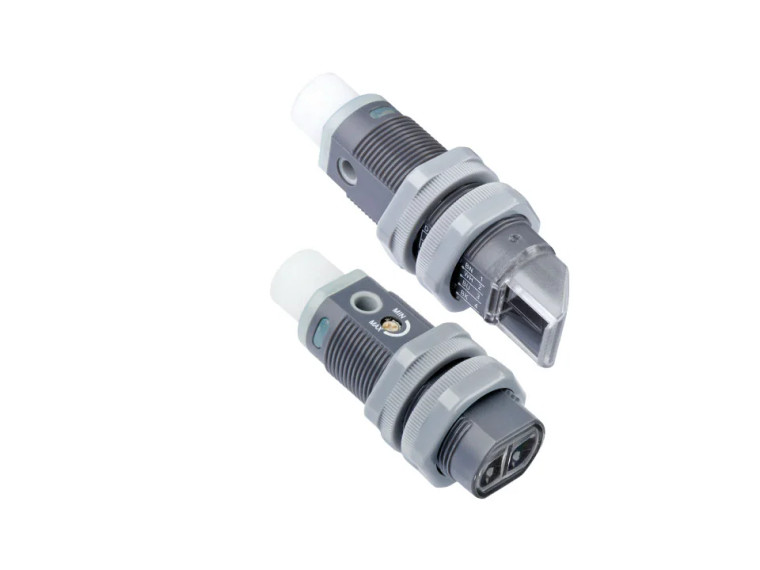

SensoPart FR 18-2 IW-PS-K4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 18-2 IW-PS-K4 is a robust photoelectric retro-reflective sensor engineered for precise detection tasks in industrial environments. It offers a working distance of up to 2500 mm and employs infrared LED technology to ensure reliable performance. The sensor features a straight light exit and a PNP switching output, making it versatile for various applications. Installation is simplified with a 2-meter, 4-wire cable, and it operates efficiently within a temperature range of -25°C to +55°C. With a velocity of 1000 Hz, it is designed for high-speed operations. The IP 67-rated enclosure provides excellent protection against dust and water ingress, ensuring durability. For easy adjustments, the sensor is equipped with a potentiometer. Comprehensive documentation, including datasheets, catalogs, operating instructions, and CAD files, is available for further reference.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 2500
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
