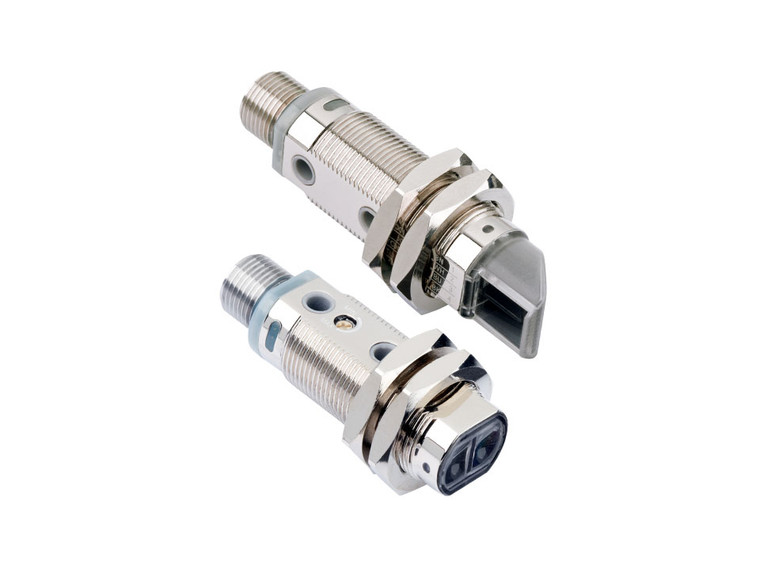

SensoPart FR 18-2 RM-NS-L4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 18-2 RM-NS-L4 is a high-performance photoelectric retro-reflective sensor engineered for precision and reliability in industrial applications. It features a robust metal threaded housing and utilizes a red LED light source for accurate detection over distances up to 3.0 meters. Equipped with polarization filters, it minimizes interference from reflective surfaces, while its NPN switching output ensures seamless integration. With a rapid response velocity of 1000 Hz, it is perfect for high-speed operations. The sensor's calibration is easily managed via a potentiometer, and it operates efficiently within a temperature range of -25°C to +55°C. Its IP67 enclosure rating makes it suitable for harsh environments, and the connection is secured with a durable metal plug M12, 4-pin. Access to the datasheet, catalog, operating instructions, and CAD files is available through the provided links for more detailed information.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 3000
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- NPN
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Metal plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
