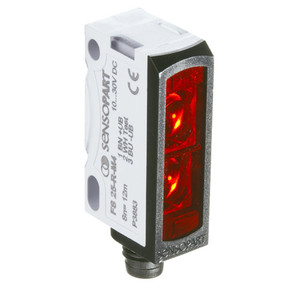

SensoPart FR 25-RF-NS-K4 Photoelectric retro-reflective sensor, fixed focus
Sensopart
The SensoPart FR 25-RF-NS-K4 is a high-performance photoelectric retro-reflective sensor designed for precise detection tasks. With a working distance ranging from 0.1 to 5 meters, this sensor utilizes a red LED light source and features a fixed focus for reliable operation. It operates with an NPN switching output and is equipped with a 2-meter, 4-wire cable for easy installation. The sensor belongs to the F25 series, measuring 34 x 20 x 12 mm, and offers a velocity of 1000 Hz, ensuring rapid response times. It includes a control input for adjustment and is rated for temperatures between -20°C and +60°C. The sensor's robust design is encapsulated in an IP69K-rated enclosure, providing excellent protection against dust and water ingress. It connects via a 3-pin M8 plug, making it suitable for various industrial applications. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 100
- Working distance max. [mm]:
- 3000
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 3-pin
- Enclosure rating:
- IP69K
