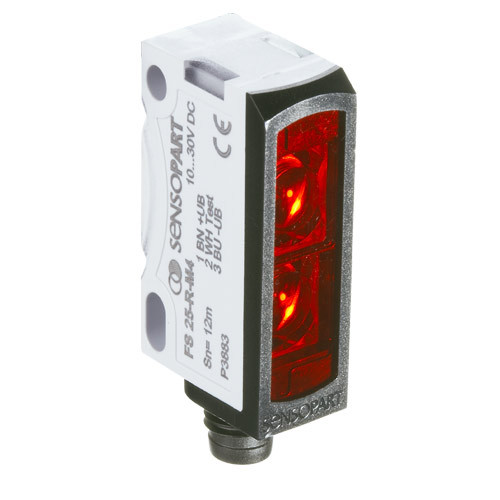

SensoPart FR 25-RF-NS-M4 Photoelectric retro-reflective sensor, fixed focus
Sensopart
The SensoPart FR 25-RF-NS-M4 is a high-performance photoelectric retro-reflective sensor designed for precise detection tasks. With a working distance ranging from 0.1 to 5 meters, this sensor utilizes a red LED light source and features a fixed focus for reliable operation. It offers a switching output of PNP and operates at a velocity of 1000 Hz, making it suitable for fast-paced environments. The sensor is equipped with a plug M8 4-pin connection type and is housed in a compact F25 series enclosure measuring 34 x 20 x 12 mm. It is built to withstand harsh conditions with an IP69K enclosure rating and a temperature range of -20 to +60°C. The sensor's control input adjustment ensures easy setup and integration into various applications. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 100
- Working distance max. [mm]:
- 3000
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 3-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
