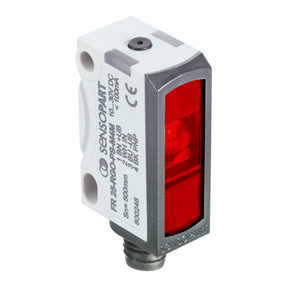

SensoPart FR 25-RLO1-NS-K4 Autocollimation laser retroreflective photoelectric sensor
Sensopart
The SensoPart FR 25-RLO1-NS-K4 is a high-performance autocollimation laser retroreflective photoelectric sensor designed for precision and reliability. With a working distance range of 0 to 4000 mm, this sensor utilizes a red laser light source (Class 1) for accurate detection. It features a teach-in adjustment for easy setup and operates with a velocity of 10 kHz, ensuring rapid response times. The sensor is equipped with an NPN switching output and a 2-meter, 4-wire cable for flexible installation. Its robust design includes an IP69K enclosure rating, making it suitable for harsh environments with a temperature range of -20 to +60°C. The compact F25 series dimensions (34 x 20 x 12 mm) allow for versatile application in various industrial settings. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 10000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
