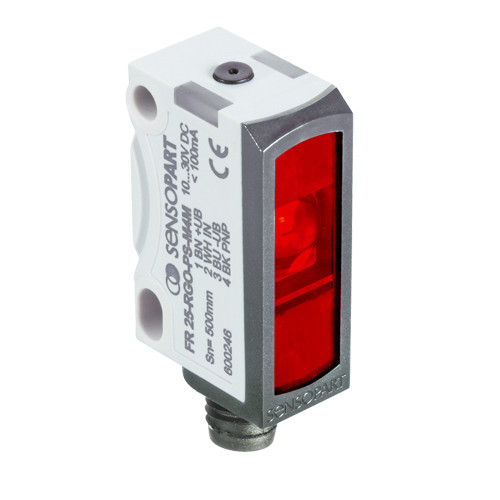

SensoPart FR 25-RLO2-NS-K4 Autocollimation laser retroreflective photoelectric sensor
Sensopart
The SensoPart FR 25-RLO2-NS-K4 is a high-performance autocollimation laser retroreflective photoelectric sensor designed for precision and reliability. With a working distance range of 0 to 4000 mm, this sensor is ideal for various industrial applications. It features a red Class 1 laser light source and operates at a velocity of 4000 Hz, ensuring fast and accurate detection. The sensor is equipped with a teach-in adjustment for easy setup and configuration. It offers a PNP switching output and is built to withstand harsh environments with an IP69K enclosure rating. The sensor operates efficiently within a temperature range of -20 to +60°C and connects via a 2-meter, 4-wire cable with a Plug M8, 4-pin connection type. For more detailed information, you can view the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
