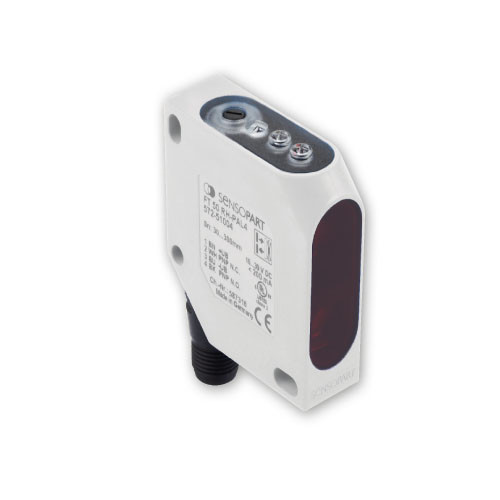

SensoPart FR 50 RL-NSVL4 Retro-reflective laser sensor
Sensopart
The SensoPart FR 50 RL-NSVL4 Retro-reflective Laser Sensor is a high-performance photoelectric sensor designed for precise detection tasks. With a working distance ranging from 0 to 20,000 mm, this sensor is ideal for a variety of applications. It features a red Class 1 laser light source and operates with a velocity of 2500 Hz, ensuring fast and accurate performance. The sensor is equipped with a potentiometer for easy adjustment and offers an NPN normally open continuous output. It connects via a 4-pin M12 plug and is built to withstand harsh environments with an IP67 enclosure rating. The sensor operates efficiently within a temperature range of -20 to +45°C. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 20000
- Velocity [Hz]:
- 2500
- Adjustment:
- Potentiometer
- Light source:
- Laser, red (Class 1)
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +45
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
