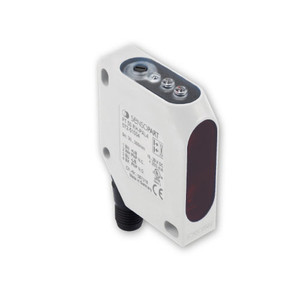

SensoPart FR 50 RL-PAK4 Retro-reflective laser sensor
Sensopart
The SensoPart FR 50 RL-PAK4 is a high-performance retro-reflective laser sensor designed for precise detection tasks. With a working distance range of 0 to 20,000 mm, this sensor is ideal for applications requiring long-range detection. It features a red Class 1 laser light source and offers a switching output of PNP/NPN, antivalent, ensuring reliable performance in various industrial environments. The sensor operates at a velocity of 2500 Hz and includes a potentiometer for easy adjustment. It is equipped with a 3-meter, 4-wire cable for convenient connectivity and is rated IP 67 for robust protection against dust and water. The operating temperature range is -20 to +45°C, making it suitable for diverse conditions. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 20000
- Velocity [Hz]:
- 2500
- Adjustment:
- Potentiometer
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +45
- Connection type:
- Cable, 4-wire, 3 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
