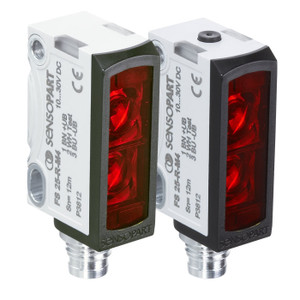

The SensoPart FS 25-RL-L-K4 is a high-performance through-beam laser sensor designed for precise detection tasks. With a working distance ranging from 0 to 20 meters, this sensor is ideal for applications requiring long-range detection. It features a robust photoelectric through-beam sensor principle, utilizing a red Class 1 laser light source for accurate and reliable performance. The sensor is equipped with a teach-in adjustment for easy setup and an IO-Link interface for seamless integration into automated systems.
Housed in a compact F25 series enclosure (34 x 20 x 12 mm), the sensor is built to withstand harsh environments with an IP69 enclosure rating, ensuring protection against dust and water ingress. It operates efficiently within a temperature range of -20 to +60°C, making it suitable for various industrial settings. The sensor's high velocity of 2000 Hz ensures rapid response times, enhancing productivity and efficiency.
The SensoPart FS 25-RL-L-K4 comes with a 2-meter, 4-wire cable and a metal plug M8, 4-pin connection type for secure and reliable connectivity. For further technical details, users can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links. This sensor is an excellent choice for industries seeking precision, durability, and ease of integration in their sensing solutions.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 18000
- Velocity [Hz]:
- 2000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
