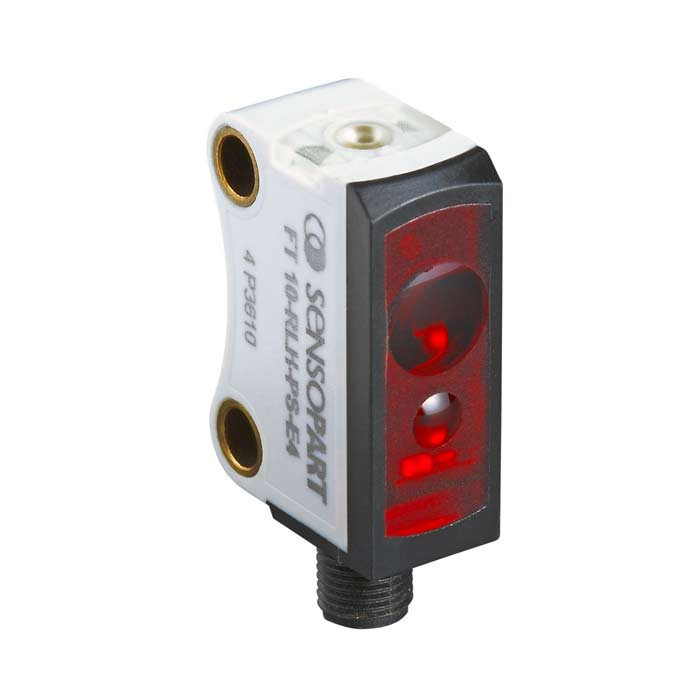

SensoPart FS/FE 10-RL-PS-KM4 Through-beam laser sensor
Sensopart
The SensoPart FS/FE 10-RL-PS-KM4 Through-beam Laser Sensor is a high-performance photoelectric sensor designed for precise detection tasks. With a working distance ranging from 0 to 3 meters, this sensor features an emitter and receiver setup, utilizing a red laser light source classified as Class 1 for safe operation. The sensor offers a teach-in adjustment method and a PNP switching output, ensuring easy integration into various systems. It operates efficiently within a temperature range of -20 to +50°C and boasts an impressive velocity of 4000 Hz, making it suitable for fast-paced environments. The compact design, part of the F10 series, measures 21.1 x 14.6 x 8 mm, and is equipped with a pigtail connection type, featuring a 200 mm cable with a 4-pin M8 connector. Rated with an IP 67 enclosure, it provides robust protection against dust and water ingress. For further technical details, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Sensor principle:
- Photoelectric through-beam sensor (sender/receiver)
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 4000
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Pigtail, plug M8, 4-wire, 200 mm
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
