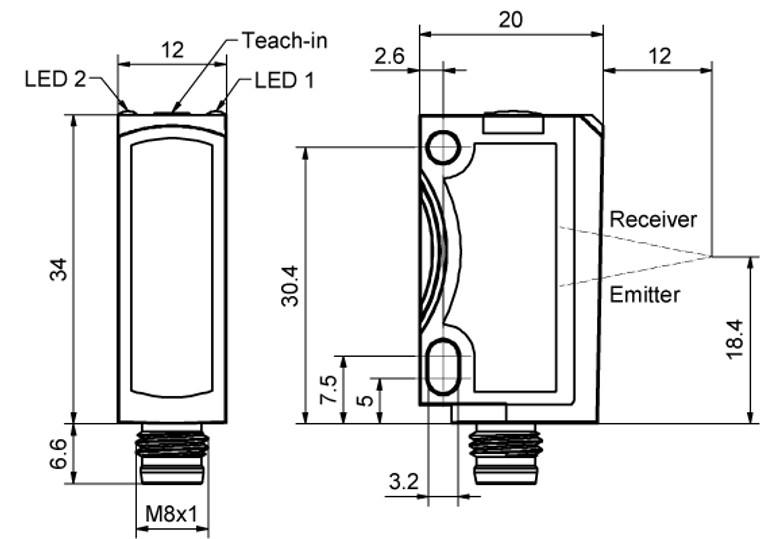

SensoPart FT 25-C1-GSL-M4M RGB color sensor with IO-Link
Sensopart
The SensoPart FT 25-C1-GSL-M4M RGB color sensor is engineered for high-precision color detection, making it ideal for applications that demand accurate color recognition. It operates with a working distance of 12 ± 3 mm and features a compact design from the F25 series, measuring just 34 x 20 x 12 mm. With a rapid operating speed of 10 kHz, this sensor ensures quick and reliable performance. The RGB LED light source allows for the detection of a single color with a spot size of 1 x 5 mm. Its teach-in function simplifies setup and calibration, while the Push-Pull switching output offers versatile connectivity. Built to endure harsh environments, the sensor has an enclosure rating of IP67 and IP69 and functions efficiently within a temperature range of -20 to +55°C. It connects via a durable metal plug M8, 4-pin interface, and supports IO-Link communication for easy integration into automated systems. Access to detailed information is available through datasheets, catalogs, brochures, operating instructions, and CAD files via the provided links.
- Amount of colors:
- 1
- Sensor principle:
- Color sensor
- Spot size [mm]:
- 1 x 5
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 12
- Working distance max. [mm]:
- 12
- Velocity [Hz]:
- 10000
- Interface:
- IO-Link
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
