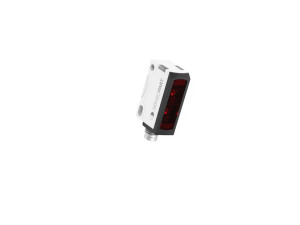

SensoPart FT 25-RA-170-PNSUL-M4M Miniature distance sensor
Sensopart
The SensoPart FT 25-RA-170-PNSUL-M4M Miniature Distance Sensor is engineered for precision in distance measurement tasks, offering a compact design ideal for space-constrained applications. It operates within a working range of 30 to 200 mm, achieving a resolution of 0.68 mm through the use of red LED light and triangulation technology. This sensor is equipped with a teach-in function and supports both analog (1 to 10 V) and IO-Link interfaces, providing flexible connectivity options. It features a robust metal plug M8 4-pin connection and an auto-detect switching output (PNP/NPN) with one switching output, ensuring adaptability in various setups. Built to withstand harsh conditions, the sensor functions effectively in temperatures ranging from -20 to +60°C and is protected by an IP67 and IP69K rated enclosure. It maintains a linearity of 2 mm, with a repeatability of 1 mm and a temperature drift of 0.2 mm/K, ensuring consistent performance. Comprehensive technical resources, including datasheets, catalogs, brochures, operating instructions, and CAD files, are accessible for further information.
- Linearity [mm]:
- 2
- Sensor principle:
- Distance sensor with triangulation
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 200
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Type:
- Cubic
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.68
- Repeatability [mm]:
- 1
- Temperature range [°C]:
- -20 ... +60
- Temperature drift [%]:
- 0,2 mm / K
- Measurement output:
- Analog (voltage), IO-Link
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69K
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
