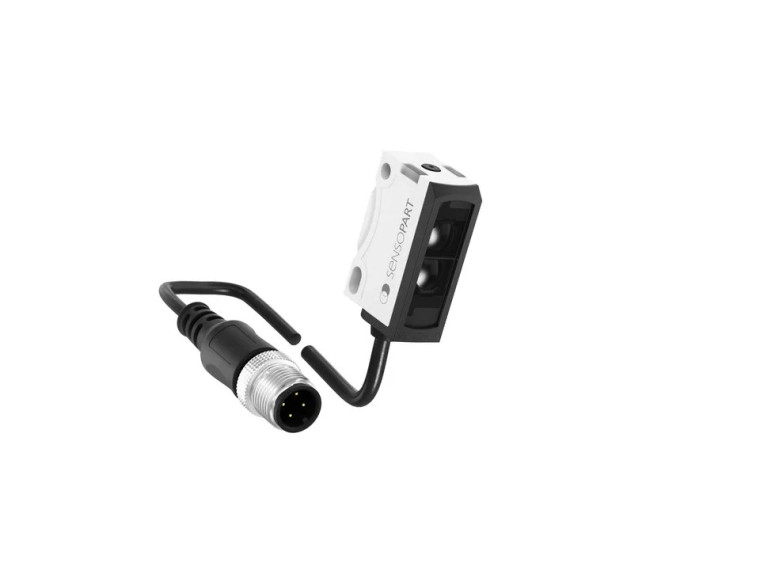

SensoPart FT 25-RGB1-GSL-KL4 Multi-color contrast sensor with IO-Link
Sensopart
The SensoPart FT 25-RGB1-GSL-KL4 is a high-performance multi-color contrast sensor designed for precision applications. With a working distance range of 9 to 15 mm and a spot size of 1 x 4 mm, this sensor is ideal for detecting subtle color differences in various environments. It operates at a velocity of 25 kHz, ensuring rapid and accurate detection. The sensor features a robust Push-Pull switching output and is equipped with an IO-Link interface for seamless integration into modern automation systems.
Constructed with an LED RGB light source, the FT 25-RGB1-GSL-KL4 offers reliable performance across a temperature range of -20 to +55°C. Its durable design is rated IP67 and IP69, providing excellent protection against dust and water ingress. The sensor is connected via a 150 mm pigtail with a 4-pin M12 plug, ensuring easy installation and maintenance.
For further technical details, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links. This sensor is part of the F25 series, known for its compact dimensions of 34 x 20 x 12 mm, making it a versatile choice for various industrial applications.
- Sensor principle:
- Contrast sensor
- Spot size [mm]:
- 1 x 4
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 9
- Working distance max. [mm]:
- 15
- Velocity [Hz]:
- 25000
- Interface:
- IO-Link
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Pigtail, plug M12, 4-wire, 150 mm
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
