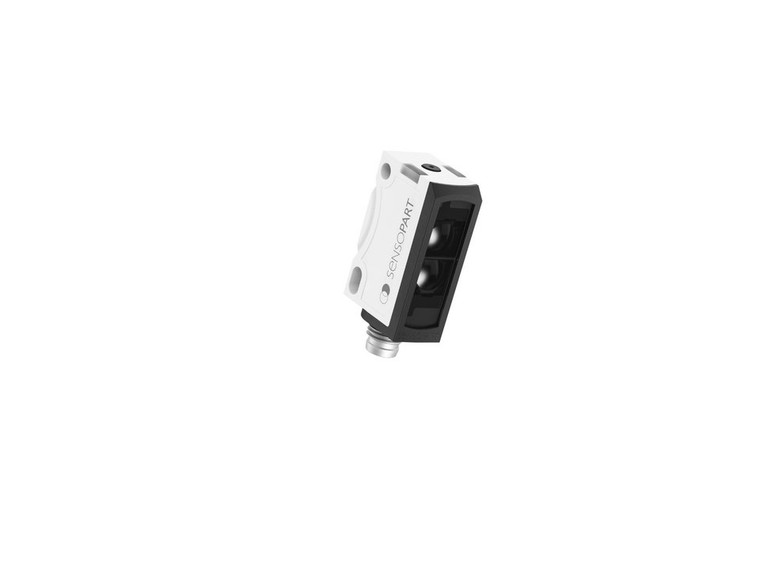

SensoPart FT 25-RGB1-GSL-M4M Multi-color contrast sensor with IO-Link
Sensopart
The SensoPart FT 25-RGB1-GSL-M4M is a high-performance multi-color contrast sensor designed for precision applications. With a compact size of 34 x 20 x 12 mm, this sensor operates on the principle of contrast detection, utilizing an RGB LED light source to ensure accurate color differentiation. It features a working distance range of 9 to 15 mm and a spot size of 1 x 4 mm, making it ideal for close-range detection tasks.
Equipped with a 25 kHz velocity and a Push-Pull switching output, the sensor ensures rapid and reliable performance. The device is integrated with an IO-Link interface, allowing for seamless communication and easy integration into automated systems. Its robust design includes a metal plug M8 4-pin connection type and an enclosure rating of IP67 and IP69, ensuring durability and protection against harsh environmental conditions.
The sensor operates efficiently within a temperature range of -20 to +55°C, making it suitable for various industrial settings. For further technical details, users can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links. This product is available for quote requests, ensuring tailored solutions for specific application needs.
- Sensor principle:
- Contrast sensor
- Spot size [mm]:
- 1 x 4
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 9
- Working distance max. [mm]:
- 15
- Velocity [Hz]:
- 25000
- Interface:
- IO-Link
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
