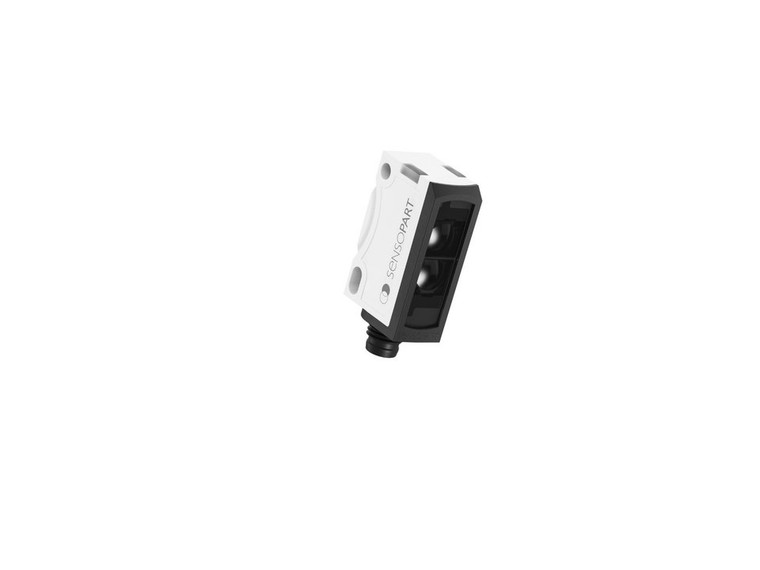

SensoPart FT 25-RGB2-GSL-M4 Multi-color contrast sensor with IO-Link
Sensopart
The SensoPart FT 25-RGB2-GSL-M4 is a high-performance multi-color contrast sensor designed for precision applications. With a compact size of 34 x 20 x 12 mm, this sensor offers a working distance range of 9 to 15 mm and a spot size of 1 x 4 mm, making it ideal for detecting subtle color differences. It operates at a rapid velocity of 10 kHz, ensuring quick and accurate readings. The sensor features a robust Push-Pull switching output and utilizes an LED RGB light source for enhanced contrast detection. It is equipped with an IO-Link interface for seamless integration into automated systems. The sensor is built to withstand harsh environments, with an enclosure rating of IP67 and IP69, and operates efficiently within a temperature range of -20 to +55°C. The connection is facilitated through a Plug M8, 4-pin interface. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Contrast sensor
- Spot size [mm]:
- 1 x 4
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 9
- Working distance max. [mm]:
- 15
- Velocity [Hz]:
- 10000
- Interface:
- IO-Link
- Light source:
- LED, RGB
- Switching output:
- Push-pull
- Temperature range [°C]:
- -20 ... +55
- Connection type:
- Plug M8, 4-pin
- Enclosure rating:
- IP 67, IP69
