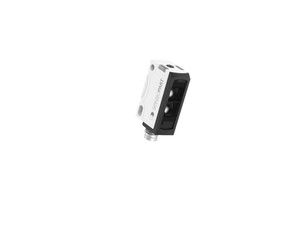

SensoPart FT 25-RH-PNSL-M4M Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 25-RH-PNSL-M4M is a high-performance photoelectric diffuse sensor with background suppression, designed for precise detection tasks. It operates within a working distance range of 1 to 200 mm, utilizing a red LED light source for reliable performance. The sensor features a teach-in adjustment method and supports auto-detect switching output for both PNP and NPN configurations. With an impressive velocity of 1000 Hz, it ensures rapid response times suitable for dynamic environments.
This sensor is part of the F25 series, measuring 34 x 20 x 12 mm, and is equipped with an IO-Link interface for seamless integration into modern automation systems. It is built to withstand harsh conditions, with an operating temperature range from -20 to +60°C and an IP69 enclosure rating, ensuring durability and protection against dust and water ingress.
The connection is facilitated through a robust metal plug M8, 4-pin, ensuring secure and reliable connectivity. For further technical details, datasheets, catalogs, brochures, operating instructions, and CAD files are available for download. This product is ideal for applications requiring precise object detection with background suppression in industrial settings.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 1
- Working distance max. [mm]:
- 200
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
