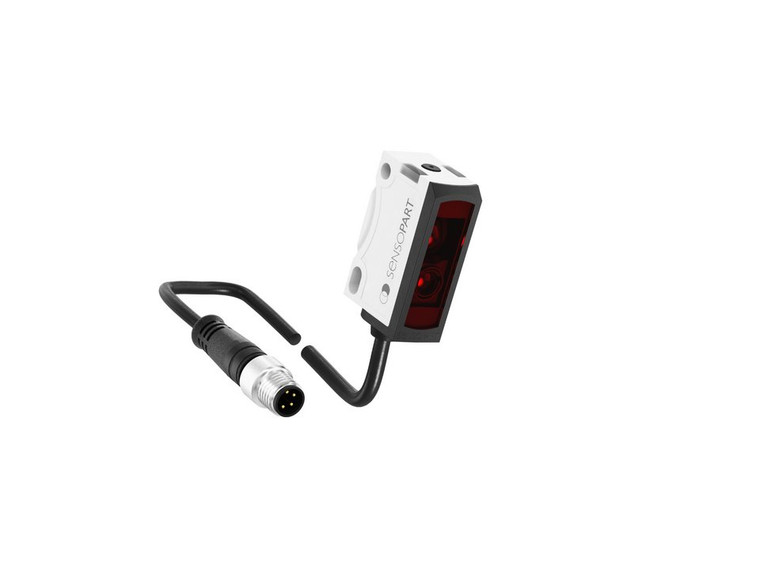

SensoPart FT 25-RHD-PNSL-KM4 Photoelectric proximity sensor with background suppression
Sensopart
The SensoPart FT 25-RHD-PNSL-KM4 is a high-performance photoelectric proximity sensor designed for precise detection with background suppression. It operates within a working distance range of 3 to 400 mm, utilizing a red LED light source for reliable performance. The sensor features a teach-in adjustment for easy setup and auto-detect switching output (PNP/NPN), making it versatile for various applications. With a velocity of 1000 Hz, it ensures rapid response times. The sensor is equipped with an IO-Link interface for seamless integration and communication. Its robust design includes a pigtail connection with a 150 mm cable and M8 4-pin connector, suitable for demanding environments with an enclosure rating of IP69. The operating temperature range is -20 to +60°C, ensuring durability in diverse conditions. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 3
- Working distance max. [mm]:
- 400
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP/NPN (auto detect)
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Pigtail, plug M8, 4-wire, 150 mm
- Enclosure rating:
- IP69
