Sensopart

SensoPart FT 55-RL2AM-320-PNSUIDL-L5M Distance sensor for a wide range of applications

SKU:

624-41012

UPC:

MPN:

624-41012

Condition:

New

Linearity [mm]:

0.4

Sensor principle:

Distance sensor with triangulation

Series:

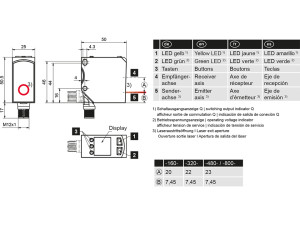

F55 (50 x 50,1 x 23 mm)

Working distance min. [mm]:

80

Working distance max. [mm]:

400

Velocity [Hz]:

1000

Interface:

IO-Link

Type:

Cubic

Light source:

Laser, red (Class 2)

Switching output:

PNP/NPN (auto detect)

Amount of swithing outputs:

2

Resolution [mm]:

0.03

Repeatability [mm]:

0.06

Temperature range [°C]:

-20 ... +50

Temperature drift [%]:

0,01%

Measurement output:

IO-Link, Analog (voltage), Analog (current)

Connection type:

Metal plug M12, 5-pin

Enclosure rating:

IP 67, IP69

Datasheet:

View

Catalog:

View

Brochure:

View

Operating Instructions:

View

CAD:

View
