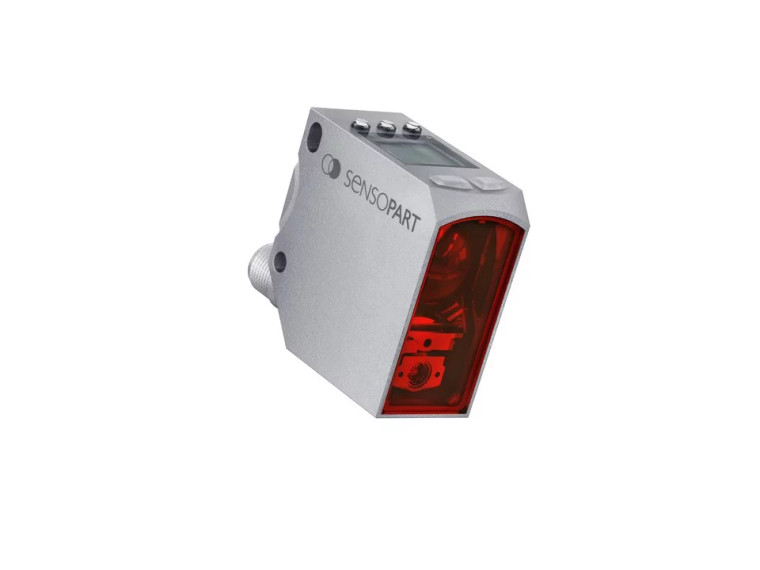

SensoPart FT 55-RL2AM-480-PNSUIDL-L5M Distance sensor for a wide range of applications
Sensopart
The SensoPart FT 55-RL2AM-480-PNSUIDL-L5M Distance Sensor is designed for a wide range of applications, offering precise measurement capabilities with a working distance from 120 mm to 600 mm. Utilizing a Class 2 red laser, this sensor employs triangulation for accurate distance detection. It features a robust metal housing with an IP67/IP69 enclosure rating, ensuring durability in various environments. The sensor includes a display for easy monitoring and a metal plug M12, 5-pin connection for secure installation. With a high velocity of 1000 Hz, it provides rapid response times, while its linearity of 0.6 mm and resolution of 0.03 mm ensure precise measurements. The sensor supports IO-Link, analog voltage, and current measurement outputs, and offers auto-detect PNP/NPN switching outputs. It operates efficiently within a temperature range of -20°C to +50°C, with minimal temperature drift. For further details, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Linearity [mm]:
- 0.6
- Sensor principle:
- Distance sensor with triangulation
- Series:
- F55 (50 x 50,1 x 23 mm)
- Working distance min. [mm]:
- 120
- Working distance max. [mm]:
- 600
- Velocity [Hz]:
- 1000
- Interface:
- IO-Link
- Type:
- Cubic
- Light source:
- Laser, red (Class 2)
- Switching output:
- PNP/NPN (auto detect)
- Amount of swithing outputs:
- 2
- Resolution [mm]:
- 0.03
- Repeatability [mm]:
- 0.06
- Temperature range [°C]:
- -20 ... +50
- Temperature drift [%]:
- 0,01%
- Measurement output:
- IO-Link, Analog (voltage), Analog (current)
- Connection type:
- Metal plug M12, 5-pin
- Enclosure rating:
- IP 67, IP69
