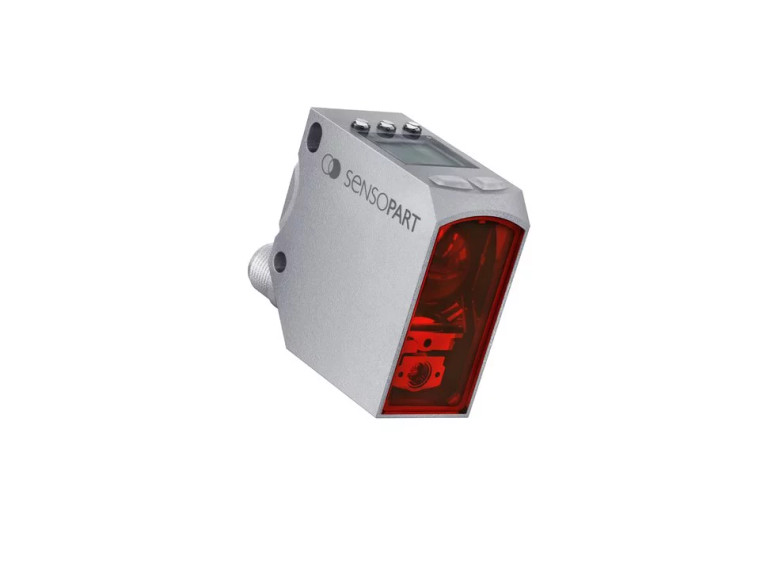

SensoPart FT 55-RLAM-480-PNSUID-S1L8M Distance sensor for a wide range of applications
Sensopart
The SensoPart FT 55-RLAM-480-PNSUID-S1L8M Distance Sensor is designed for a wide range of applications, offering precise measurement capabilities with a working distance ranging from 120 mm to 600 mm. This sensor utilizes a triangulation principle and features a red laser light source (Class 1) for accurate distance detection. It boasts a high resolution of 0.05 mm and repeatability of 0.06 mm, ensuring reliable performance in various industrial settings.
Housed in a robust metal casing, the sensor is rated IP67/IP69, making it suitable for harsh environments. It operates efficiently within a temperature range of -20°C to +50°C, with minimal temperature drift of 0.01%. The sensor is equipped with an RS485 interface and offers multiple measurement outputs, including analog voltage and current.
The FT 55-RLAM-480-PNSUID-S1L8M features two auto-detecting PNP/NPN switching outputs and a QA output, with a velocity of 1000 Hz. Its compact cubic design (50 x 50.1 x 23 mm) and M12 8-pin metal plug connection ensure easy integration into existing systems. For further technical details, refer to the datasheet, catalog, brochure, operating instructions, and CAD files available through the provided links.
- Linearity [mm]:
- 0.6
- Sensor principle:
- Distance sensor with triangulation
- Series:
- F55 (50 x 50,1 x 23 mm)
- Working distance min. [mm]:
- 120
- Working distance max. [mm]:
- 600
- Velocity [Hz]:
- 1000
- Interface:
- RS485
- Type:
- Cubic
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP/NPN (auto detect)
- Amount of swithing outputs:
- 2
- Resolution [mm]:
- 0.05
- Repeatability [mm]:
- 0.06
- Temperature range [°C]:
- -20 ... +50
- Temperature drift [%]:
- 0,01%
- Measurement output:
- RS485, Analog (voltage), Analog (current)
- Connection type:
- Metal plug M12, 8-pin
- Enclosure rating:
- IP 67, IP69
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
