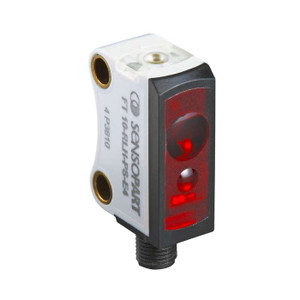

SensoPart FT 10-B-RLF1-NS-KM3 Diffuse laser sensor with background suppression, fixed focus
Sensopart
The SensoPart FT 10-B-RLF1-NS-KM3 is a high-performance diffuse laser sensor designed for precision and reliability. With a working distance range of 6 to 15 mm, this sensor utilizes a photoelectric diffuse principle with background suppression to ensure accurate detection. The fixed focus and a spot size of 1 x 3 mm make it ideal for applications requiring pinpoint accuracy. Operating at a velocity of 1000 Hz, it features a red laser light source (Class 1) and an NPN switching output. The sensor is equipped with a 200 mm pigtail connection with an M8 3-pin connector, ensuring easy integration into various systems. It is built to withstand harsh environments with an enclosure rating of IP 67 and operates efficiently within a temperature range of -20 to +50°C. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 6
- Working distance max. [mm]:
- 15
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Pigtail, plug M8, 3-wire, 200 mm
- Enclosure rating:
- IP 67
