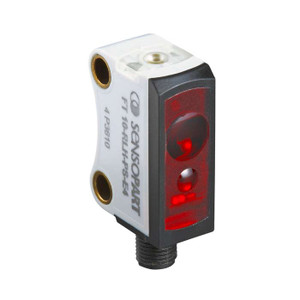

SensoPart FT 10-B-RLF1-PS-K4 Diffuse laser sensor with background suppression, fixed focus
Sensopart
The SensoPart FT 10-B-RLF1-PS-K4 is a high-performance photoelectric diffuse sensor with background suppression, designed for precision and reliability. Featuring a fixed focus with a working distance range of 6 to 15 mm, this sensor utilizes a red laser light source (Class 1) for accurate detection. With a compact design from the F10 series (21.1 x 14.6 x 8 mm), it offers a spot size of 1 x 3 mm and operates at a velocity of 1000 Hz. The sensor is equipped with a PNP switching output and a 2-meter, 4-wire cable for easy connectivity. It is built to withstand harsh environments with an IP 67 enclosure rating and operates efficiently within a temperature range of -20 to +50°C. For further technical details, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 1 x 3
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 6
- Working distance max. [mm]:
- 15
- Velocity [Hz]:
- 1000
- Adjustment:
- Control input
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +50
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
