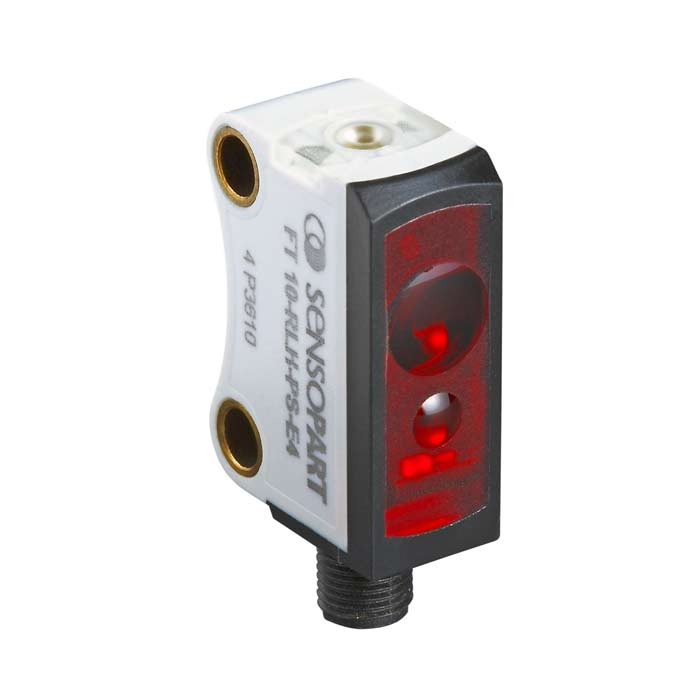

SensoPart FT 10-RH-PS-KM4 Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 10-RH-PS-KM4 is a compact photoelectric diffuse sensor with advanced background suppression, designed for precise detection tasks. It operates within a working distance of 5 to 70 mm, utilizing a red LED light source for reliable performance. The sensor features a teach-in adjustment for easy setup and a PNP switching output for seamless integration into various systems. With a high velocity of 1000 Hz, it ensures rapid response times, making it ideal for fast-paced environments. The sensor is equipped with a 200 mm pigtail and a 4-pin M8 connector for straightforward connectivity. It is built to withstand harsh conditions, with an enclosure rating of IP 67 and a temperature range of -20 to +60°C. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F10 (21,1 x 14,6 x 8 mm)
- Working distance min. [mm]:
- 5
- Working distance max. [mm]:
- 70
- Velocity [Hz]:
- 1000
- Adjustment:
- Teach-in
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Pigtail, plug M8, 4-wire, 200 mm
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Brochure:
- View
- Operating Instructions:
- View
- CAD:
- View
