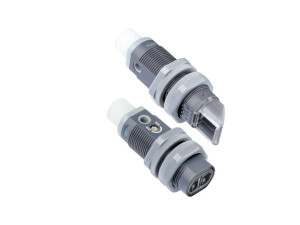

SensoPart FT 18-2 RW-NS-L4 Photoelectric diffuse sensor
Sensopart
The SensoPart FT 18-2 RW-NS-L4 is a cutting-edge photoelectric diffuse sensor engineered for exceptional precision and reliability in industrial applications. It boasts a working distance of up to 320 mm and employs a red LED light source with a 90-degree light exit, ensuring optimal detection capabilities. This sensor features an NPN switching output and is equipped with a robust metal plug M12, 4-pin connection, facilitating secure and straightforward installation. With a rapid velocity of 1000 Hz, it delivers swift response times, making it perfect for high-speed industrial settings. The sensor's sensitivity can be finely adjusted via a potentiometer, allowing customization to meet specific application requirements. Designed to endure challenging environments, it operates within a temperature range of -25 to +55°C and carries an IP67 enclosure rating, providing excellent protection against dust and water ingress. For comprehensive technical details, users can refer to the datasheet, catalog, operating instructions, and CAD files available through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 320
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- NPN
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Metal plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
