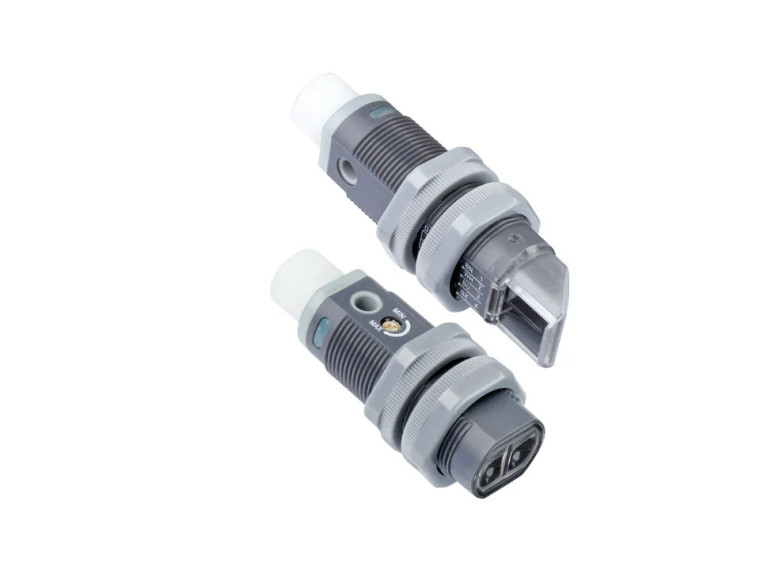

SensoPart FT 18-2 RW-PS-K4 Photoelectric diffuse sensor
Sensopart
The SensoPart FT 18-2 RW-PS-K4 is engineered for precision and reliability, offering a working distance range from 0 to 320 mm. It utilizes a red LED light source with a 90-degree light exit, ensuring optimal detection. The sensor features a PNP switching output and comes with a 2-meter, 4-wire cable for straightforward installation. With a velocity of 1000 Hz, it delivers rapid response times, ideal for fast-paced environments. Fine-tuning is made easy with an adjustable potentiometer, allowing customization to specific application needs. Built to endure harsh conditions, it operates within a temperature range of -25 to +55°C and boasts an IP67 enclosure rating, providing robust protection against dust and water ingress. For comprehensive technical details, additional resources such as datasheets, catalogs, operating instructions, and CAD files are accessible through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 320
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Cable, 4-wire, 2 m
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
