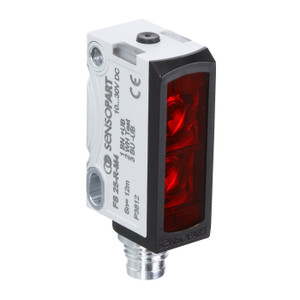

SensoPart FT 25-RL-NS-M4M Diffuse laser photoelectric proximity switch
Sensopart
The SensoPart FT 25-RL-NS-M4M is a high-performance diffuse laser photoelectric proximity switch designed for precision and reliability. With a working distance ranging from 1 mm to 250 mm, this sensor utilizes a red laser light source (Class 1) for accurate detection. It features a teach-in adjustment method and an NPN switching output, making it versatile for various applications. The sensor is housed in a compact F25 series enclosure (34 x 20 x 12 mm) and is equipped with a robust metal plug M8, 4-pin connection. It operates efficiently within a temperature range of -20°C to +60°C and boasts an impressive velocity of 4000 Hz. The device is rated IP69K, ensuring durability in harsh environments. For more detailed information, you can access the datasheet, catalog, brochure, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor
- Series:
- F25 (34 x 20 x 12 mm)
- Working distance min. [mm]:
- 1
- Working distance max. [mm]:
- 250
- Velocity [Hz]:
- 4000
- Adjustment:
- Teach-in
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP69K
