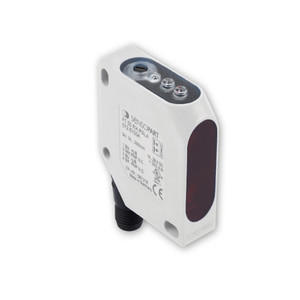

SensoPart FT 50 IH-NAL4 Diffuse infrared sensor with background suppression
Sensopart
The SensoPart FT 50 IH-NAL4 is a high-performance diffuse infrared sensor designed for precise detection with background suppression. It features a working distance range from 150 mm to 600 mm, making it versatile for various applications. The sensor operates with a spot size of 20 x 20 mm and utilizes an LED infrared light source, ensuring reliable performance. It offers a switching output of PNP/NPN, antivalent, and can be adjusted using a potentiometer for optimal sensitivity. With a velocity of 800 Hz, it is suitable for fast-paced environments. The sensor is housed in a compact F50 series enclosure (50 x 50 x 17 mm) and is rated IP 67 for protection against dust and water. It operates efficiently within a temperature range of -20°C to +60°C. The connection is facilitated through a 4-pin M12 plug, ensuring secure and easy installation. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 20 x 20
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 150
- Working distance max. [mm]:
- 600
- Velocity [Hz]:
- 800
- Adjustment:
- Potentiometer
- Light source:
- LED, infrared
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
