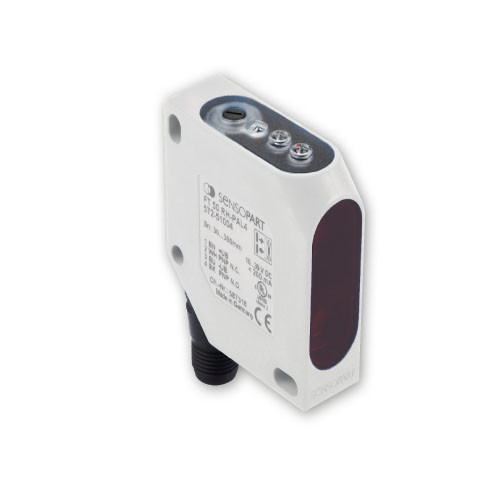

SensoPart FT 50 RH-NAL4 Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 50 RH-NAL4 is a high-performance photoelectric diffuse sensor with advanced background suppression, designed for precise detection tasks. It features a compact design with dimensions of 50 x 50 x 17 mm, making it suitable for various industrial applications. The sensor operates with a red LED light source and offers a working distance range from 30 mm to 300 mm, ensuring flexibility in different environments. With a spot size of 8 x 8 mm and a velocity of 1000 Hz, it delivers accurate and rapid response times.
This sensor is equipped with both NPN and PNP switching outputs, providing versatility in integration with existing systems. The antivalent switching output further enhances its adaptability. The FT 50 RH-NAL4 is designed to withstand harsh conditions, with an operating temperature range of -20 to +60°C and an IP67 enclosure rating, ensuring reliable performance in demanding settings.
For ease of installation and maintenance, the sensor features a plug M12, 4-pin connection type and can be adjusted using a potentiometer. Comprehensive documentation, including datasheets, catalogs, operating instructions, and CAD files, is readily available for download, facilitating seamless integration and operation.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 8 x 8
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 300
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP/NPN, antivalent
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
