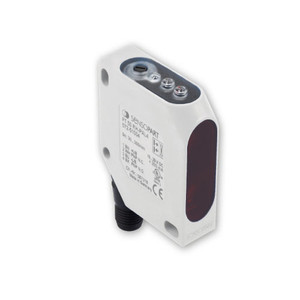

SensoPart FT 50 RH-NSVL4 Photoelectric diffuse sensor with background suppression
Sensopart
The SensoPart FT 50 RH-NSVL4 is a high-performance photoelectric diffuse sensor designed with advanced background suppression technology. It features a compact design with dimensions of 50 x 50 x 17 mm, making it ideal for various industrial applications. The sensor operates with a red LED light source and offers a working distance range from 30 mm to 300 mm, ensuring precise detection capabilities. With a spot size of 8 x 8 mm and a velocity of 1000 Hz, it provides reliable and fast response times. The sensor is equipped with an NPN normally open continuous output and is easily adjustable via a potentiometer. It connects through a 4-pin M12 plug and is built to withstand harsh environments with an IP 67 enclosure rating. The operating temperature range is from -20°C to +60°C, ensuring durability in diverse conditions. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Spot size [mm]:
- 8 x 8
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 300
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +60
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
