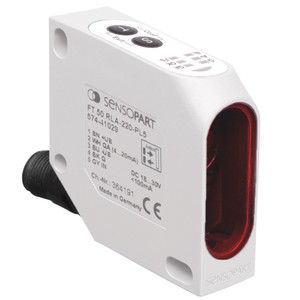

The SensoPart FT 50 RLA 70-L8 Distance Sensor is a high-precision device designed for accurate distance measurement within a range of 30 to 100 mm. Utilizing a red laser light source (Class 1), this sensor operates on the principle of triangulation to deliver reliable results with a resolution of 0.1 mm and a repeatability of 0.075 mm. It features an analogue measurement output with a current range of 4 to 20 mA and includes two PNP switching outputs. The sensor is housed in a compact cubic design (50 x 50 x 17 mm) and is equipped with a robust M12 8-pin plug for easy connectivity. With an enclosure rating of IP 67, it is well-suited for challenging environments, operating efficiently within a temperature range of -10 to +60°C. The sensor's linearity is maintained at 0.25 mm, and it boasts a high velocity of 1000 Hz, ensuring quick and accurate measurements. For further technical details, datasheets, catalogs, operating instructions, and CAD files are available through the provided links.
- Linearity [mm]:
- 0.25
- Sensor principle:
- Distance sensor with triangulation
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 100
- Velocity [Hz]:
- 1000
- Type:
- Cubic
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Amount of swithing outputs:
- 2
- Resolution [mm]:
- 0.1
- Repeatability [mm]:
- 0.075
- Temperature range [°C]:
- -10 ... +60
- Temperature drift [%]:
- 0,02%
- Measurement output:
- Analog (current)
- Connection type:
- Plug M12, 8-pin
- Enclosure rating:
- IP 67
