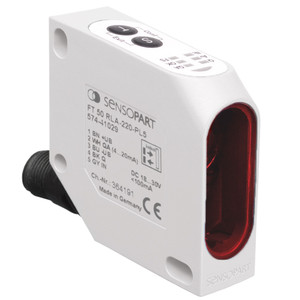

SensoPart FT 50 RLA 70-S1L8 Distance sensor with RS485 interface

The SensoPart FT 50 RLA 70-S1L8 Distance Sensor is a high-precision device designed for accurate distance measurement within a range of 30 to 100 mm. Utilizing a red Class 1 laser as its light source, this sensor offers a resolution of 0.1 mm and a repeatability of 0.075 mm, ensuring reliable performance in various applications. The sensor operates on the principle of triangulation and features a cubic design with dimensions of 50 x 50 x 17 mm, making it compact and easy to integrate into different systems. Equipped with an RS485 interface and analogue output (4 to 20 mA), the FT 50 RLA 70-S1L8 provides versatile connectivity options. It includes two PNP switching outputs, enhancing its functionality for diverse industrial environments. The sensor's enclosure is rated IP67, offering robust protection against dust and water ingress, suitable for challenging conditions. With a velocity of 1000 Hz, the sensor delivers rapid response times, and its temperature range of -10 to +60°C ensures reliable operation in varying climates. The device features a plug M12, 8-pin connection type for secure and straightforward installation. Additionally, the sensor boasts a linearity of 0.25 mm and a minimal temperature drift of 0.02%, contributing to its exceptional accuracy. For further technical details, users can access the datasheet, catalog, operating instructions, and CAD files through the provided links. The SensoPart FT 50 RLA 70-S1L8 Distance Sensor is an ideal choice for applications requiring precise distance measurement and robust performance.
