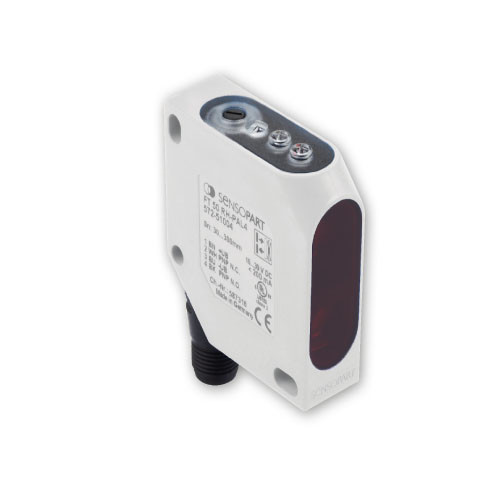

SensoPart FT 50 RLH-NSVL4 Diffuse laser sensor with background suppression
Sensopart
The SensoPart FT 50 RLH-NSVL4 is a high-performance photoelectric diffuse laser sensor designed for precise detection with background suppression. It operates within a working distance range of 30 mm to 150 mm, making it ideal for various industrial applications. The sensor features a red Class 1 laser light source and offers a switching output of NPN, ensuring reliable performance. With a velocity of 2500 Hz, it provides rapid response times for dynamic environments. The sensor is equipped with a potentiometer for easy adjustment and is housed in a compact F50 series enclosure measuring 50 x 50 x 17 mm. It is built to withstand harsh conditions with an IP 67 enclosure rating and operates efficiently within a temperature range of -20°C to +45°C. The connection is facilitated through a 4-pin M12 plug, ensuring secure and straightforward installation. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 150
- Velocity [Hz]:
- 2500
- Adjustment:
- Potentiometer
- Light source:
- Laser, red (Class 1)
- Switching output:
- NPN
- Temperature range [°C]:
- -20 ... +45
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
