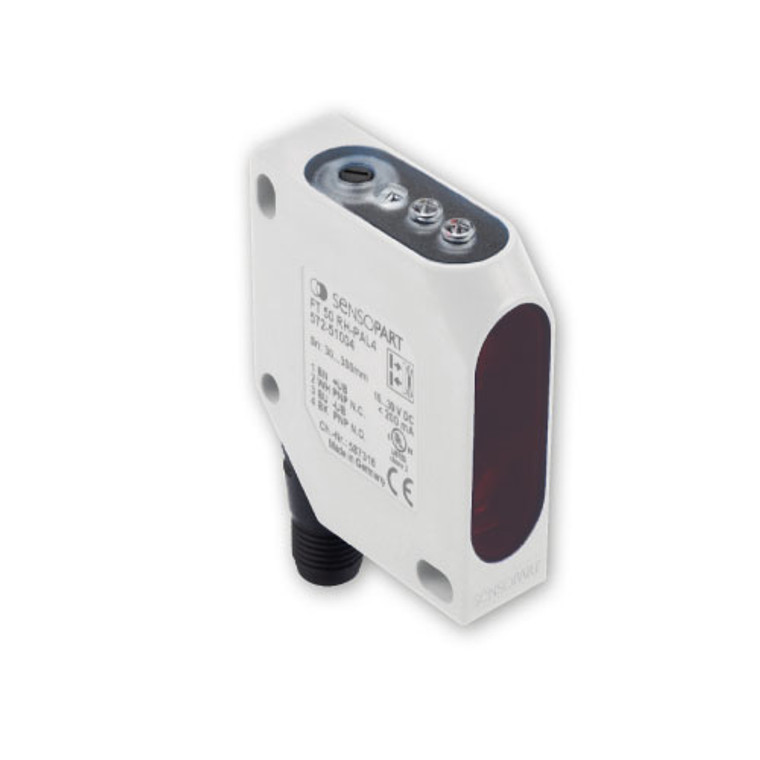

SensoPart FT 50 RLHD-PSVL4 Diffuse laser sensor with background suppression
Sensopart
The SensoPart FT 50 RLHD-PSVL4 is a high-performance diffuse laser sensor designed for precision detection with background suppression. It operates within a working distance range of 50 mm to 300 mm, making it ideal for various industrial applications. This sensor features a PNP N.O./continuous output and is equipped with a 4-pin M12 plug for easy connectivity. With a velocity of 2500 Hz, it ensures rapid response times. The sensor utilizes a red Class 1 laser light source and includes a potentiometer for adjustment, allowing for fine-tuning to suit specific needs. It operates efficiently within a temperature range of -20°C to +45°C and boasts an IP 67 enclosure rating, ensuring durability in challenging environments. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Sensor principle:
- Photoelectric diffuse sensor with Background Suppression
- Series:
- F50 (50 x 50 x 17 mm)
- Working distance min. [mm]:
- 50
- Working distance max. [mm]:
- 300
- Velocity [Hz]:
- 2500
- Adjustment:
- Potentiometer
- Light source:
- Laser, red (Class 1)
- Switching output:
- PNP
- Temperature range [°C]:
- -20 ... +45
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
