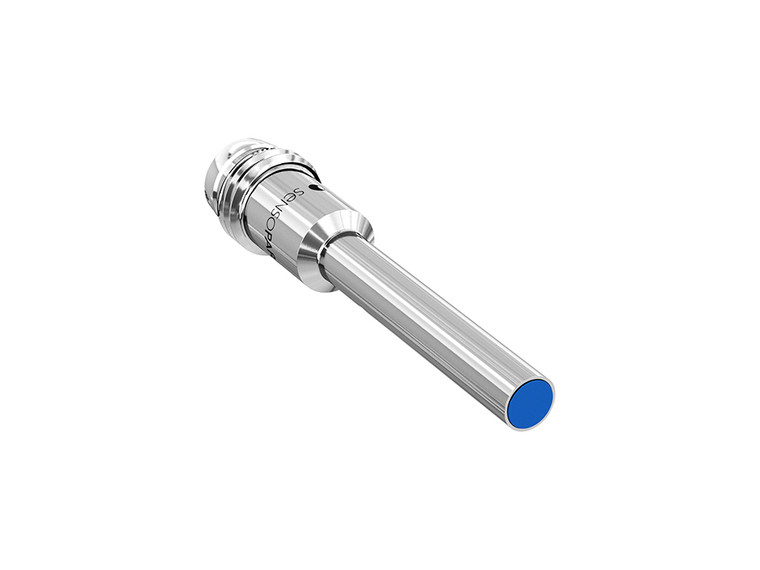

SensoPart IDT 4 -S-B2-PSL-M3M Inductive sensor Ø 4 mm / standard switching distance
Sensopart
The SensoPart IDT 4 -S-B2-PSL-M3M is engineered for precision and reliability, featuring a compact 4 mm barrel type housing ideal for flush mounting applications. It offers a standard switching distance with a rated operating distance of 1 mm and exceptional repeatability of 0.02 mm, ensuring accurate detection in diverse industrial settings. Equipped with a PNP switching output and IO-Link interface, it seamlessly integrates into automated systems. The robust stainless steel housing withstands temperatures from -25 to +70 C and is rated IP 67 for protection against dust and water ingress. Secure connectivity is ensured with its metal plug M8, 3-pin connection. For further details, access the datasheet, catalog, and CAD files through the provided links.
- Rated operating distance Sn [mm]:
- 1
- Repeatability [mm]:
- 0.02
- Interface:
- IO-Link
- Velocity [Hz]:
- ? 3000
- Mounting:
- Flush
- Housing:
- Stainless steel
- Series:
- ø 4 mm
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M8, 3-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- CAD:
- View
