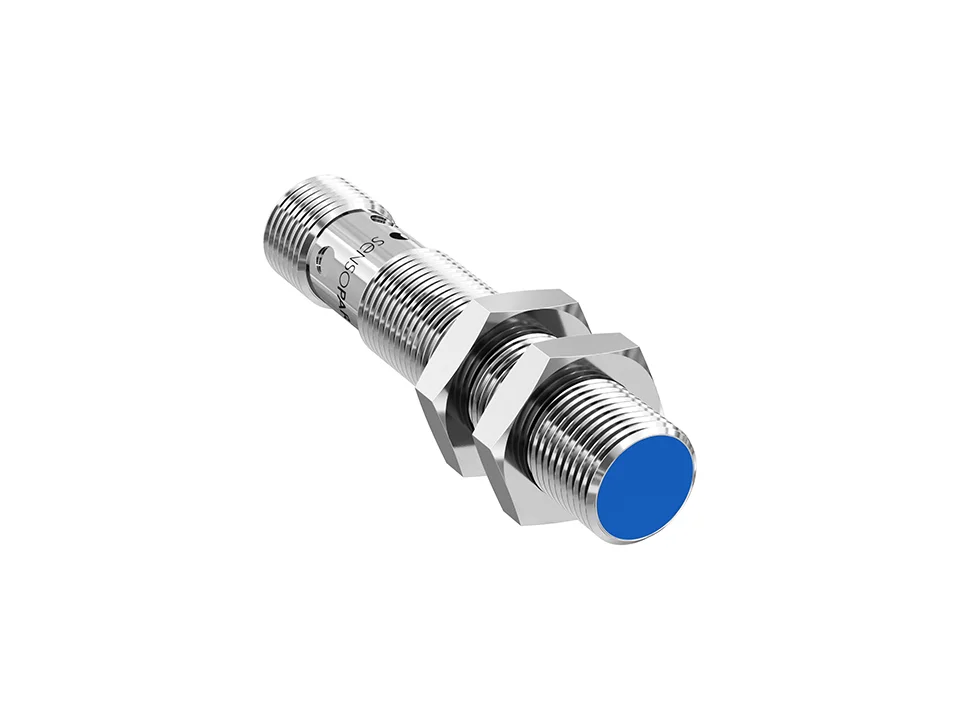

SensoPart IMT 12-S-QB3-PSL-L4M Inductive sensor M12 / increased switching distance
Sensopart
The SensoPart IMT 12-S-QB3-PSL-L4M is an advanced inductive sensor designed for precision and reliability. Housed in a robust M12 casing, this sensor offers an increased switching distance of 6 mm, ensuring enhanced performance in various industrial applications. It features a semi-flush design and operates with a PNP/NO output configuration, making it versatile for different setups. The sensor is equipped with a convenient M12 4-pin plug for easy connectivity and supports IO-Link 1.1, allowing for seamless integration into modern automation systems. With excellent repeatability, this sensor is ideal for applications requiring consistent and accurate detection.
- Rated operating distance Sn [mm]:
- 6
- Repeatability [mm]:
- 0.3
- Interface:
- IO-Link
- Velocity [Hz]:
- ? 800
- Mounting:
- Quasi-flush
- Housing:
- Brass, chrome-pated
- Series:
- M12
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M12, 4-pin
- Enclosure rating:
- IP 67
