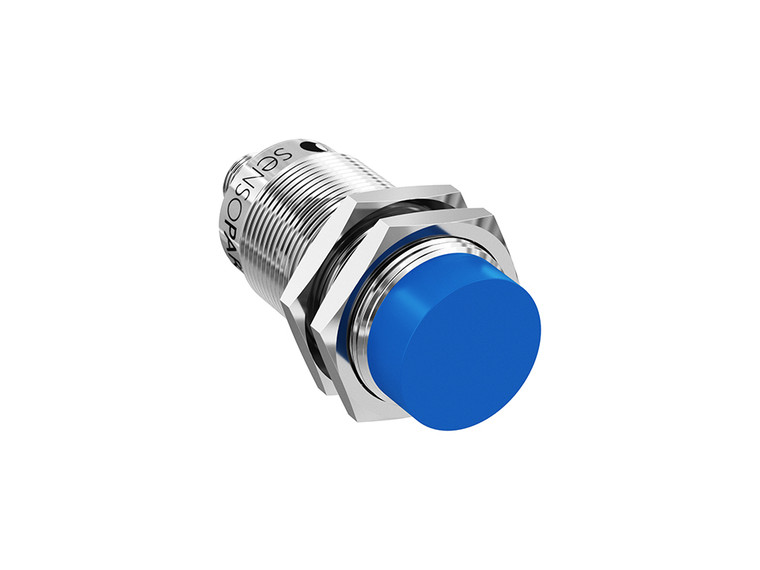

SensoPart IMT 30-A-NB3-PS-L4M Inductive sensor M30 / increased switching distance / analogue output
Sensopart
The SensoPart IMT 30-A-NB3-PS-L4M Inductive Sensor is designed for precision and reliability, featuring a long sensing range and outstanding accuracy. With a resolution in the micrometer range, this sensor ensures exceptional temperature stability, making it ideal for demanding industrial applications. Housed in a robust M30 casing, it offers an increased switching distance and is equipped with a non-flush design. The sensor provides an analogue output of either 0 to 10 V or 4 to 20 mA, allowing for versatile integration into various systems. Its PNP/NO configuration and M12 4-pin plug ensure easy connectivity and installation.
- Rated operating distance Sn [mm]:
- 0 ... 20
- Repeatability [mm]:
- 0,35
- Mounting:
- Quasi-flush
- Housing:
- Brass, chrome-pated
- Series:
- M30
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M12, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- CAD:
- View
