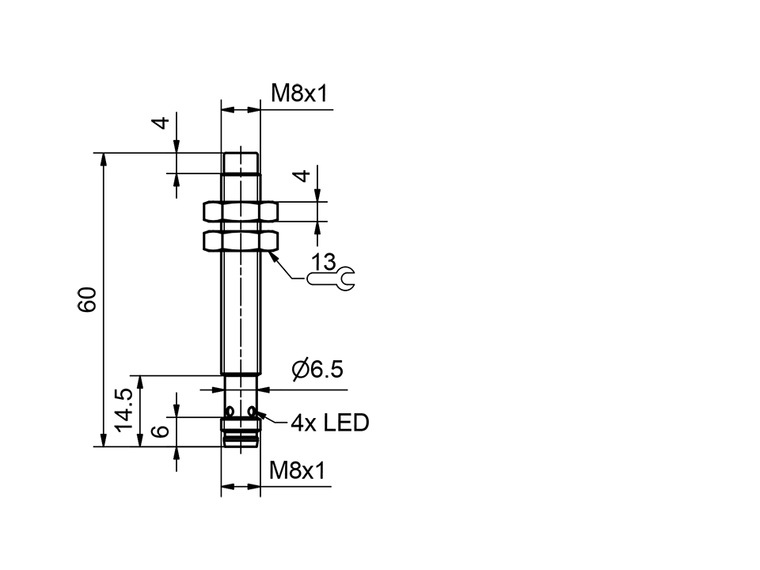

SensoPart IMT 8-S-NB3-PSL-M3M Inductive sensor M8 / standard switching distance
Sensopart
The SensoPart IMT 8-S-NB3-PSL-M3M is a high-performance inductive sensor designed for precision and reliability. Encased in a robust M8 housing, this sensor offers a standard switching distance with a sensing range of 6 mm. It features a non-flush design and operates with a PNP/NO output configuration, ensuring seamless integration into various applications. The sensor is equipped with an M8 3-pin plug for easy connectivity and supports IO-Link 1.1, providing advanced parameterization options for enhanced flexibility and control. Ideal for industrial environments, this sensor delivers consistent performance and adaptability to meet diverse operational needs.
- Rated operating distance Sn [mm]:
- 6
- Repeatability [mm]:
- 0.3
- Interface:
- IO-Link
- Velocity [Hz]:
- ? 500
- Mounting:
- Non-flush
- Series:
- M08
- Type:
- Barrel type
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Metal plug M8, 3-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
