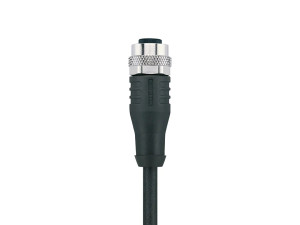

SensoPart K4/L4-5m-PUR M12 socket, 4-pin, straight, to M8 plug, 4-pin, straight, length 5 m, a-coded, PUR, IP 65, IP 67, IP 68, IP 69
Sensopart
The SensoPart K4/L4-5m-PUR is a versatile adapter cable tailored for IO-Link applications, offering a 5-meter reach with straight connectors on both ends. It features a 4-pin M12 socket on Side A and a 4-pin M8 plug on Side B, both in a straight configuration. Crafted from robust PUR material, this cable is engineered to withstand challenging environments, meeting IP65, IP67, IP68, and IP69 standards for exceptional dust and water resistance. Designed with four wires, it is perfect for power supply and I/O tasks, and its unshielded design ensures flexibility and reliability, even in dynamic settings like robotics and drag-chains. For comprehensive specifications, refer to the datasheet, catalog, and CAD files available through the provided links.
- Suitable for:
- IO-Link
- Length [m]:
- 5
- Side A: Connector type:
- M12
- Side A: Number of pins:
- 4
- Side A: Connector orientation:
- straight
- Side B: Connector type:
- M8
- Side B: Number of pins:
- 4
- Side B: Connector orientation:
- straight
- Number of wires:
- 4
- Shielding:
- unshielded
- Suitable for robots:
- Yes
- Suitable for drag-chains:
- Yes
- Category:
- Power supply and I/O cables
- Enclosure rating:
- IP65
- Datasheet:
- t:
- f&
- f:
- 5662&
- token:
- cd551aa3b64fa0b270d1b07d7b91a90c8f81e0cb" target="_blank">View
- Catalog:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
